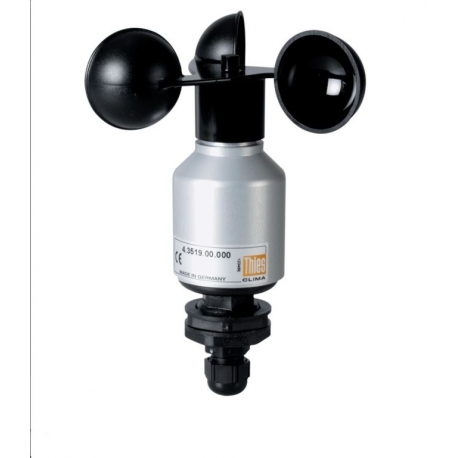

Anemometer - compact

The anemometer consists of a duraluminium (hard aluminium) body with KOMAXIT® surface coating. Inside, there is stainless-steel shaft with axial stainless-steel bearings. The top end of the shaft contains a brass hexagon connected with a pressed plastic Robinson cross. The cross is secured with a closed bolt suspended with a rubber sealing ring.

The lower part of the shaft contains a calicle of an optical closure, parts of which are soldered into a printed circuit and other electronics.

Basic parameters:

• optical revolution sensor
• powered by a 5, 12 or 24 VDC

• outputs: TTL or RS485

• constant 1m/s = 10 pulses

• linearity up to 30 m/s, accuracy ±2%

• mounting into a tube of a 25-mm (1") diameter

• measurement range: 0 to 50 m/s

• temperature range: -20 to +50 degrees centigrade (°C)

• connected through a 2WK18279 connector (part of the package)

• height: 165 mm

• cross diameter: 120 mm

• weight: 200g

• duraluminium (hard-aluminium) case, KOMAXIT® surface coating, stainless-steel shaft bearings

Assembling

The anemometer is placed in a vertical position into a 25mm-tube (1") and is secured by a M4 screw which at the same time grounds the body of the anemometer. Once the connector with the service cable is screed on, it can be coated in spaghetti insulation.

While testing the anemometer, it is important to insert a rubber sealing ring on top of the cross underneath the closed M4 bolt.

Connecting the anemometer to the evaluation unit is done through a 2WK18279 connector which is part of the package.

WARNING

To connect this anemometer to the SM2-MU, it is necessary to buy also analog extension module SM2-AD.
